As project lead, I kept a five-contributor software effort moving across BLE, DSP, mobile, offline state, cloud sync, and clinician review.

Abstract
Stream
Process
Persist
Review
Lead

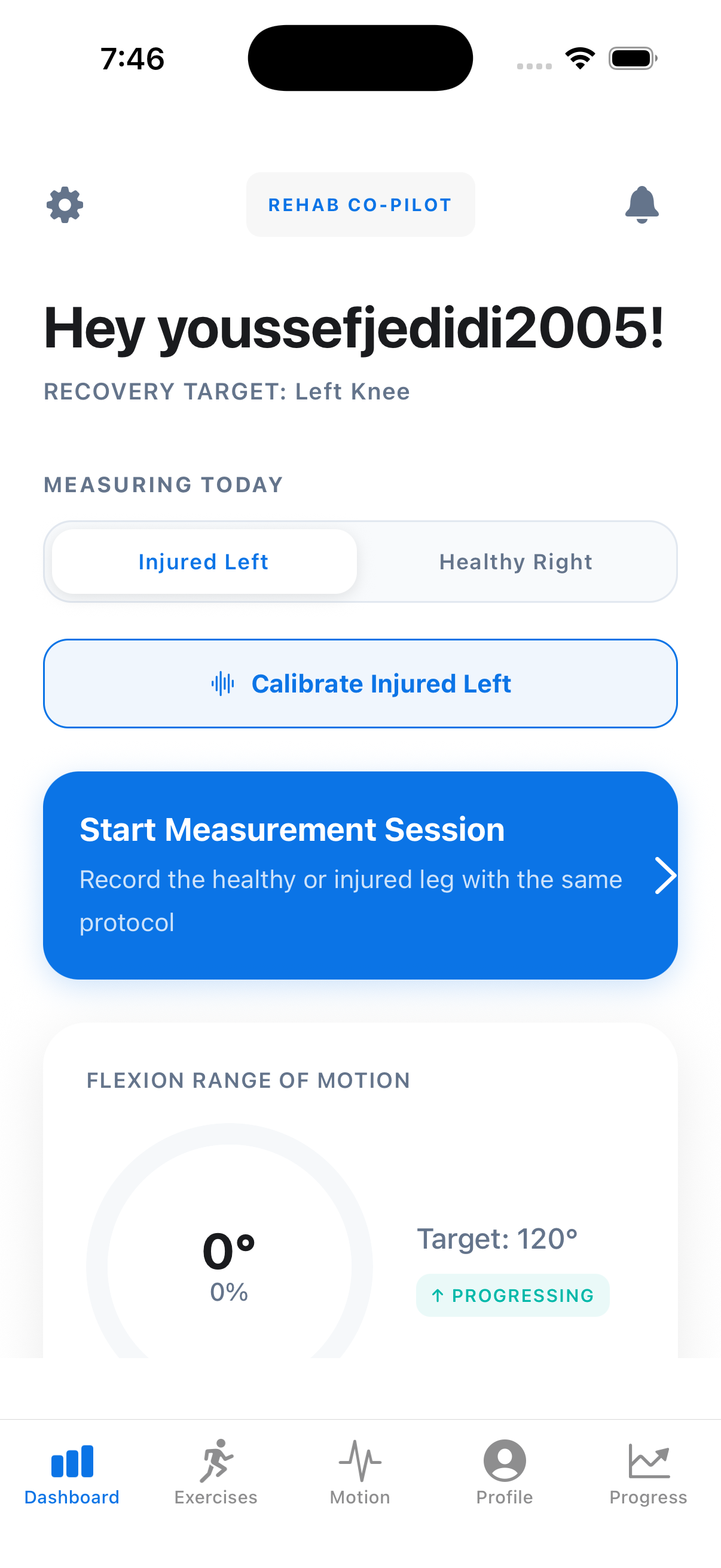

Smart Sleeve public patient mobile dashboard — Patient mobile product · synthetic or public-safe evidenceOpen organization repository

Swipe through the evidence01 / 06

A real/mock sleeve connector kept software development independent of scarce physical hardware.
REALESP32 BLE
MOCKSeeded generator
CONTRACTSame consumer API
ISleeveConnectorReal + mockProgrammable harness
Make hardware availability an adapter choice and keep the consumer packet contract unchanged.
Public connector source + tests
Physical validation pending
Eight-channel EMG/IMU packets are parsed and buffered without coupling transport to UI.
PACKETESP32 bytes
PARSEChannel samples
FIFOTyped frame buffer
Packet parserFIFO buffersTyped frames
Separate packet counters, channel buffers, and reconnect behavior from signal interpretation.
Public parser and harness tests
Prototype telemetry
Filters, calibration, normalization, and feature extraction turn noisy telemetry into display state.
RAW8 channels
FILTERNotch + bandpass
CALIBRATEWarmup + baseline
ANALYTICSDisplay state
IIR filteringWarmup + calibrationFeatures
Keep raw amplitude from masquerading as progress before the calibration state is valid.
Public DSP and normalization tests
No clinical accuracy claim
Redux and SQLite preserve patient sessions locally, then Firebase syncs when connectivity returns.
UIImmediate state
SQLITEDurable session
SYNCRetry boundary
FIREBASEShared record
Redux migrationSQLiteRetry + sync
Keep immediate UI state, durable local sessions, and cloud sharing as separate responsibilities.
Public storage and migration tests
Prototype sync scale
The clinician portal reuses patient and session records in directory, detail, goals, and telemetry views.
DIRECTORYFind a patient
DETAILHistory + goals
SESSIONTelemetry summary
DirectoryPatient detailSession analytics
Organize demo evidence for review without making diagnostic, treatment, or outcome claims.
Public portal screenshots
Educational demo data
Five public contributors converged mobile, DSP, hardware, portal, data, tests, and CI on one demo system.
MOBILEPatient workflow
DSP + BLETelemetry system
WEB + DATAPortal + sync
MAINIntegrated demo
5 contributors16 merged PRsSuccessful CI
Use shared contracts so workstreams can move independently and still integrate into a demonstrable product.
Public repository and PR history
Team-delivered prototype

System viewOne connector kept the product moving with or without hardwareThe physical sleeve and programmable mock share the same consumer contract; this proves testability, not physical-device validation.
